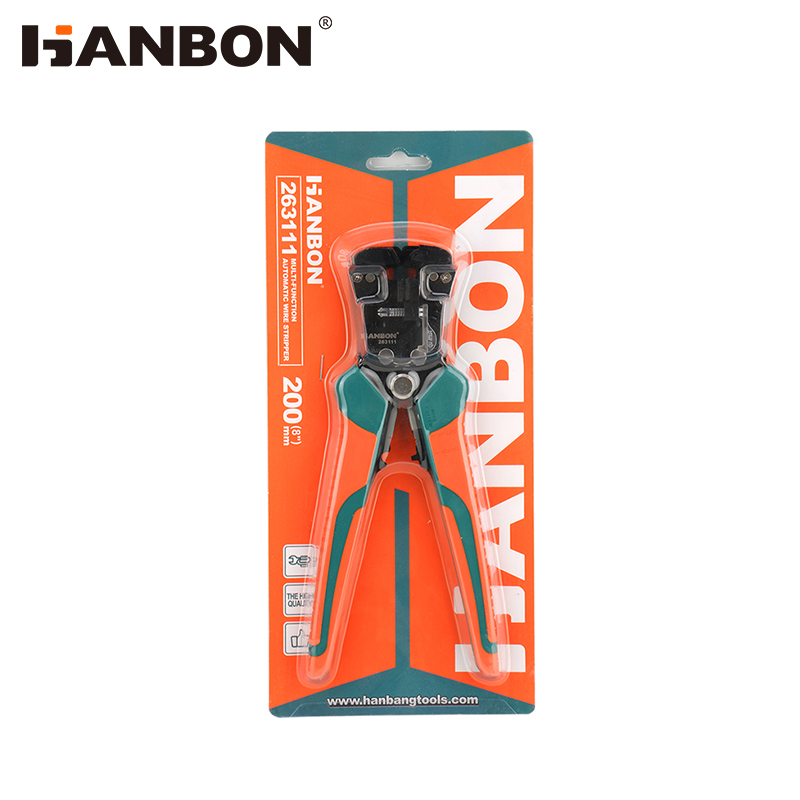

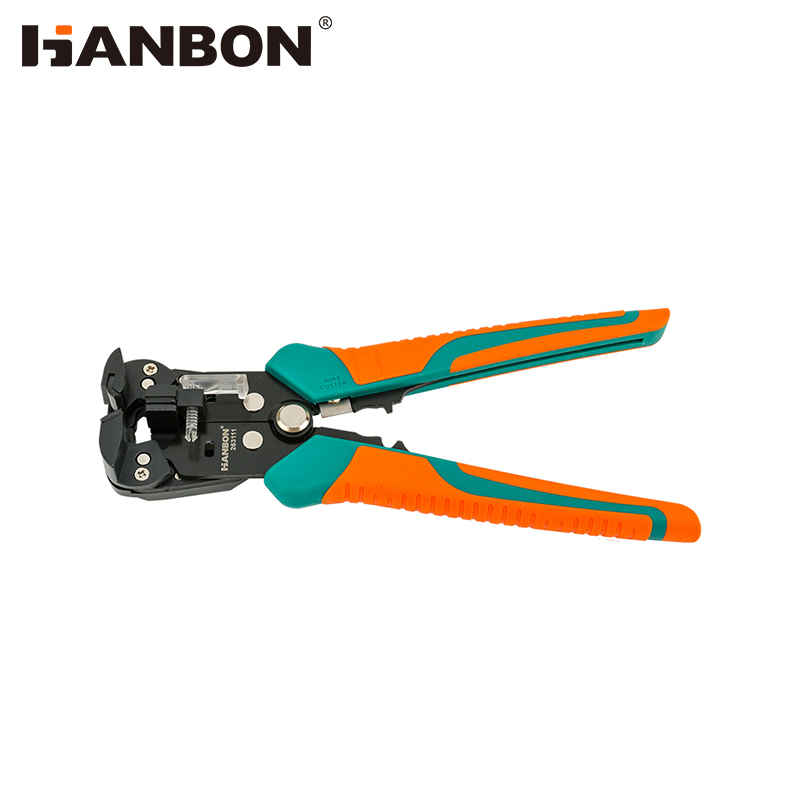

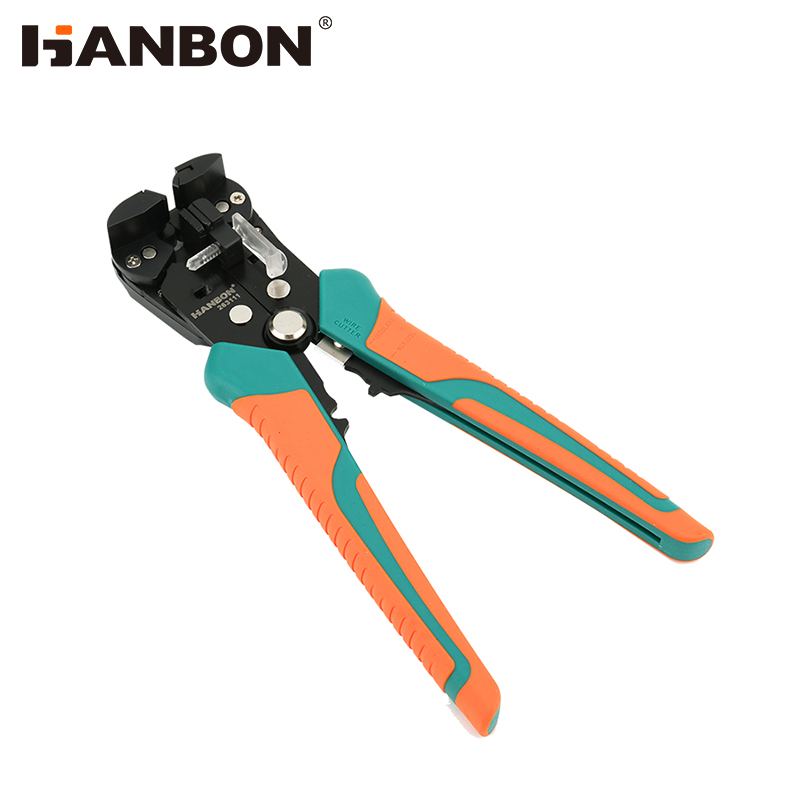

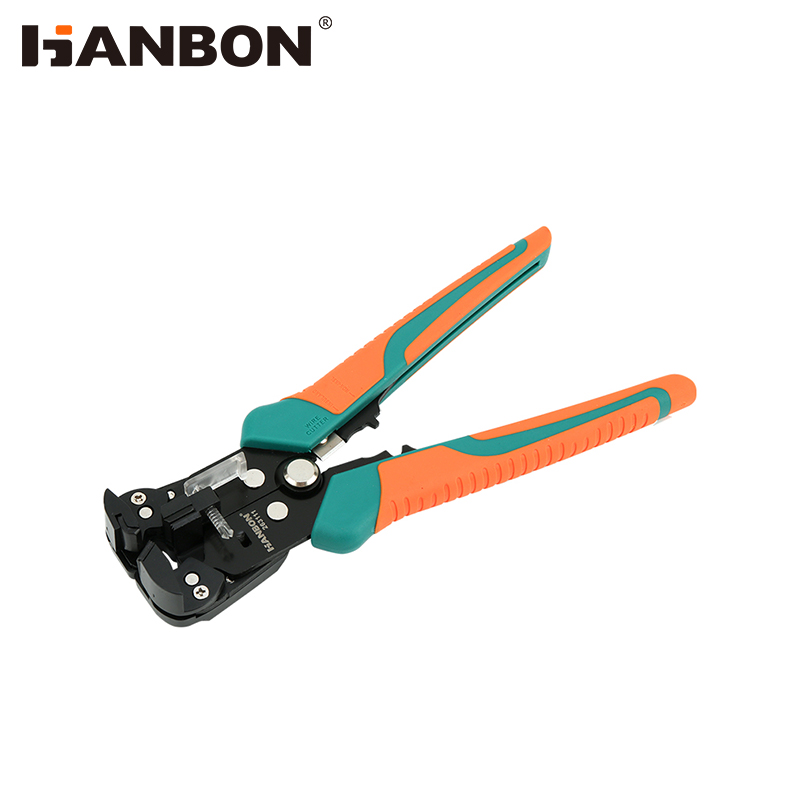

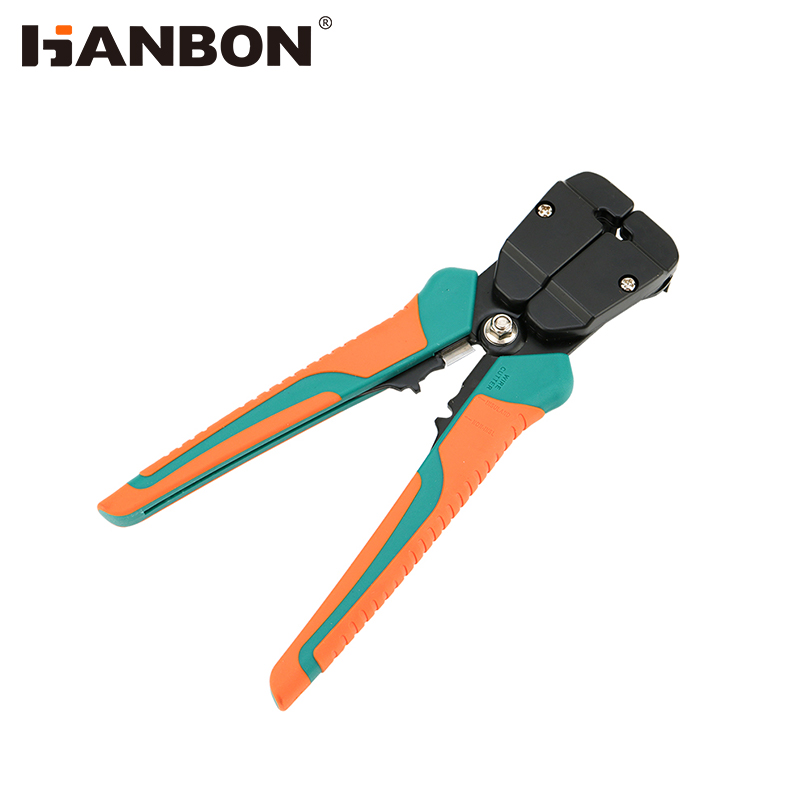

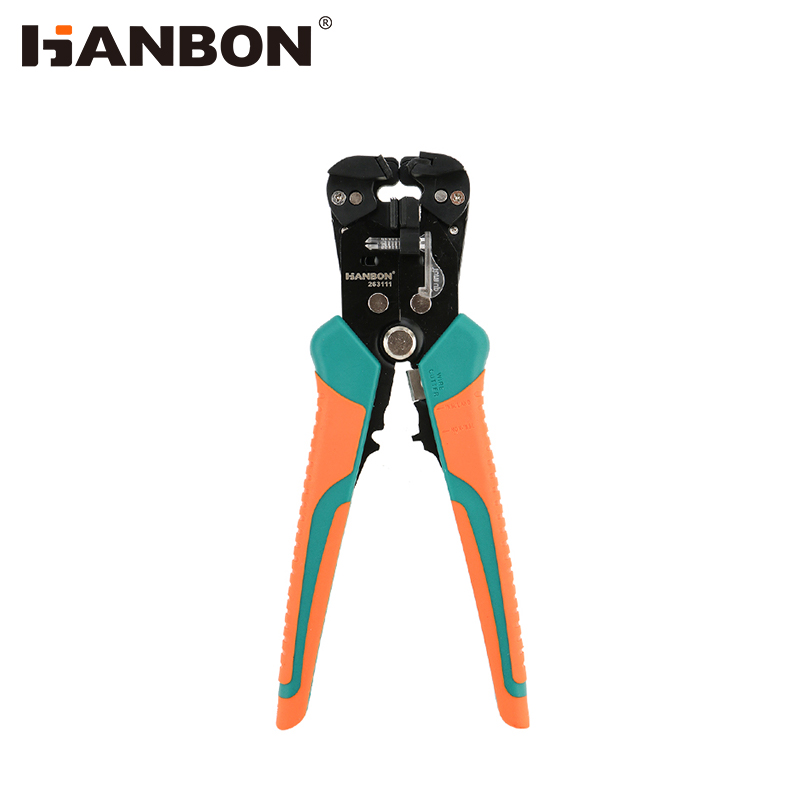

The HANBON 263111 is a precision handheld multi-function wire stripper for electrical cable crimping, built for electricians and field technicians. It integrates wire stripping, cable cutting and terminal crimping functions into one compact unit, supporting streamlined workflow for commercial procurement and on-site operation.
This tool features calibrated stripping notches and hardened cutting edges, engineered to remove cable insulation without damaging internal copper conductors. It accommodates wire gauges from 10 to 24 AWG, adapting to both thick power cables and fine signal wires. The integrated crimping jaw supports flat terminals of 2-8 pins, covering common terminal specifications in electrical and communication projects. With all three functions combined, operators can complete cable preparation without switching between multiple tools, streamlining workflow for high-volume installation tasks.
This electrical cable crimping tool fits diverse industrial applications across multiple sectors. In telecom maintenance centers, it supports fast stripping and crimping of twisted-pair cables for network patch panels and jack installations, matching the efficiency requirements of centralized network deployment. In automotive repair shops, technicians use it to process harness wiring for ECUs, sensors and lighting systems, with precise control to avoid damage to vehicle circuit components. For electronics assembly lines, it handles fine-gauge wires from 22 to 24 AWG for PCB prototyping and soldering preparation, suitable for batch production environments. It also supports residential electrical installations to prepare Romex and NM-B cables for outlet and switch terminations, and serves as a core tool for field service teams conducting emergency repairs in HVAC, security and smart home systems.
Parameter | Details |
Model | 263111 |
Size | 8"/200mm |
Material | Carbon steel+ sk5blade |
Hardness | 50-52HRC |
Range | Flat 2-8pin, Wire 0.5-6mm² |
Function | stripping/crimping/cutting |
Package | Packed by sliding card |
| | |
The tool is designed with calibrated stripping notches corresponding to standard wire gauges. Each notch is sized to cut through insulation layers without nicking the internal copper core, maintaining the structural integrity of conductors for signal transmission and power supply circuits. This consistent stripping performance reduces material waste caused by damaged wires in batch operations.
The built-in wire cutter and terminal crimping jaw eliminate the need for separate tools during cable processing. For high-volume installation work, this integrated design reduces tool-switching steps and can cut total job time by up to 40% compared with using individual single-function tools. The crimping jaw matches flat terminals from 2 to 8 pins, covering most common terminal types in low-voltage electrical projects.
The cutting and stripping edges are forged from high-carbon steel with SK5 blade material, reaching a hardness of 50-52HRC. The edges retain their sharpness after hundreds of operation cycles, maintaining consistent performance in long-term field use. This material selection extends the service life of the tool and reduces replacement frequency for enterprise customers.
The handles are covered with rubberized grips, which increase friction during operation and reduce hand fatigue during prolonged use. The tool has a total length of 8"/200mm and weighs less than 200g, with a slim profile that fits easily into tool belts or work pockets, making it suitable for on-site repairs and outdoor operations.
HANBON provides structured after-sales coverage for all tool products to support stable business operations for commercial users. Manual hand tools come with a 5-year quality warranty, while electric tools carry a 3-year warranty, alongside lifetime after-sales consultation support. The after-sales team guarantees 24-hour response to all service inquiries. For defective parts caused by manufacturing defects within the warranty period, free replacement service is provided. Customers can contact the support team for specific warranty claim procedures and eligibility confirmation.
For initial cooperation, terms are set as 30% down payment with the balance paid via T/T before shipment. For cooperative relationships lasting over one year, 100% T/T before shipment is required.
The standard production and delivery cycle is 15-30 days. During peak production months, the lead time may extend to 45 days. Please contact our sales team for confirmed lead times for specific order volumes.
Shipment invoices with a value under USD$$5,000.00 will incur a shipping and handling charge of US$$150.00. For custom color requirements, the minimum order quantity is usually 1,000 to 2,000 pieces. Please consult our sales team for detailed terms.
Yes, custom logo printing is available for bulk orders, subject to a minimum order quantity requirement. Specific MOQ terms can be confirmed with our sales team based on logo design and order volume.
