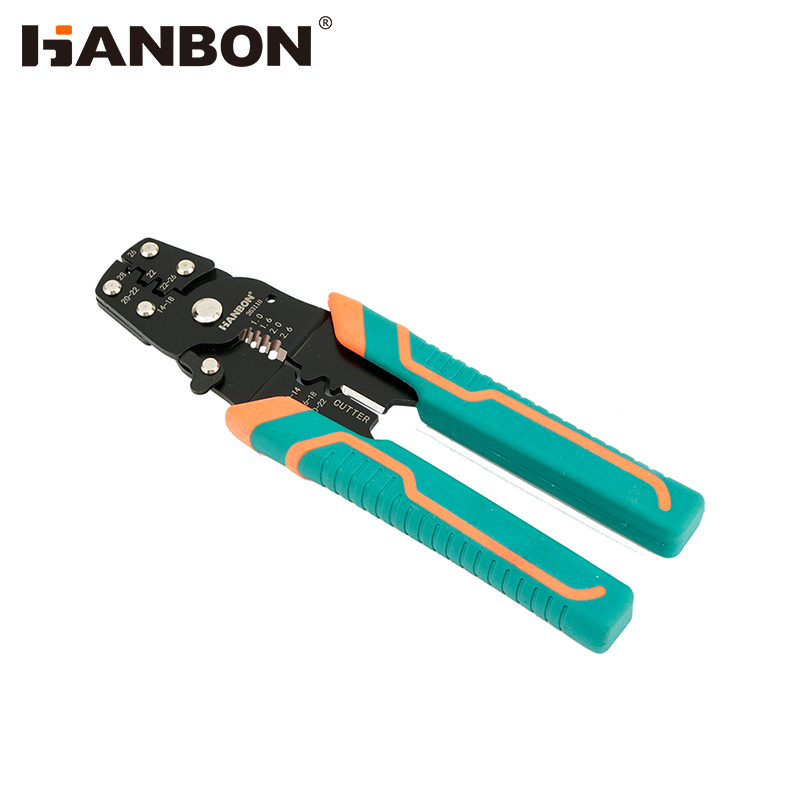

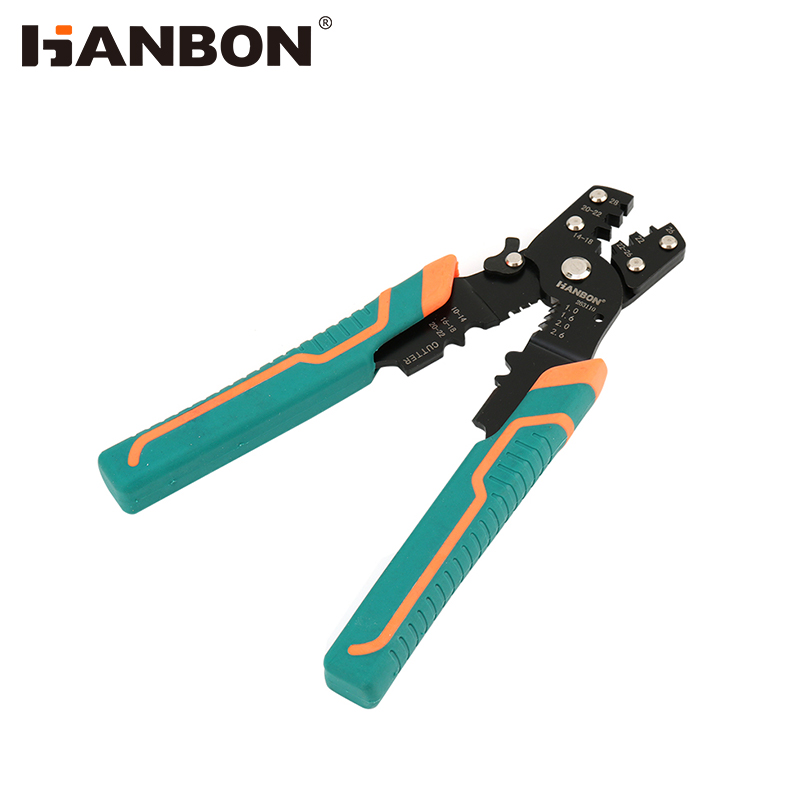

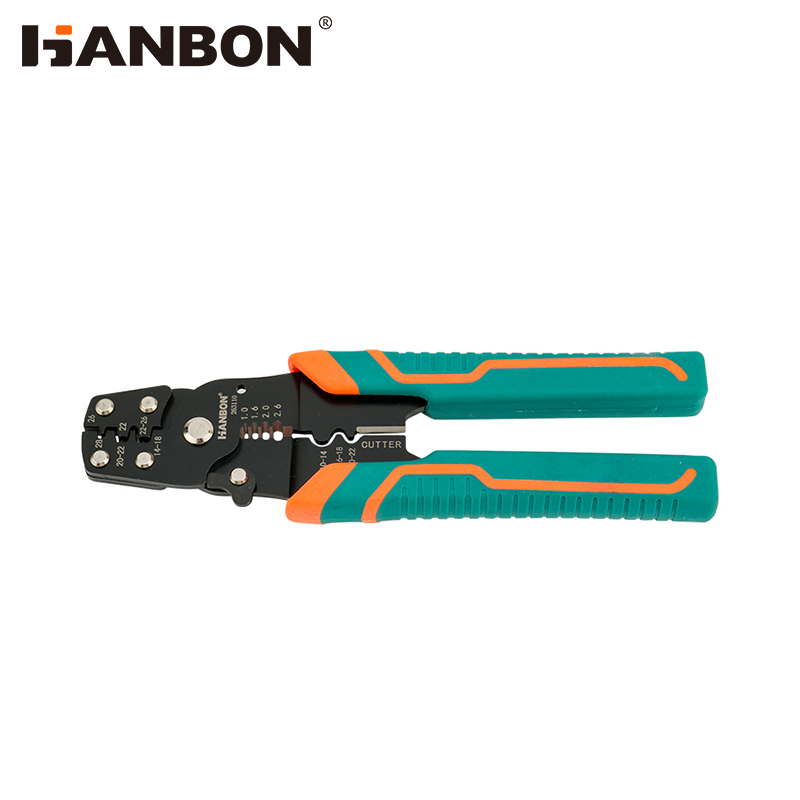

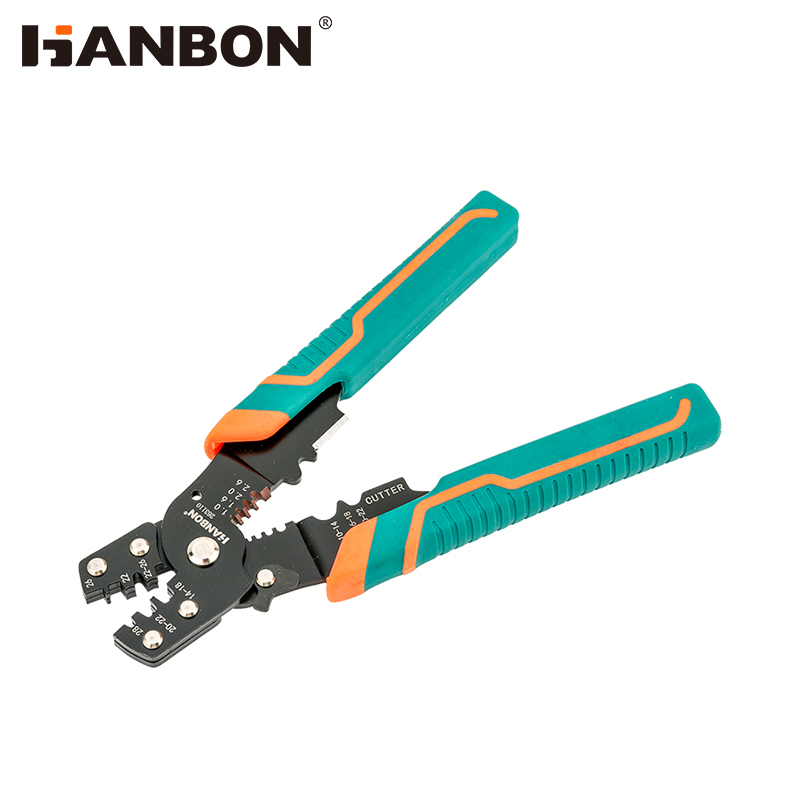

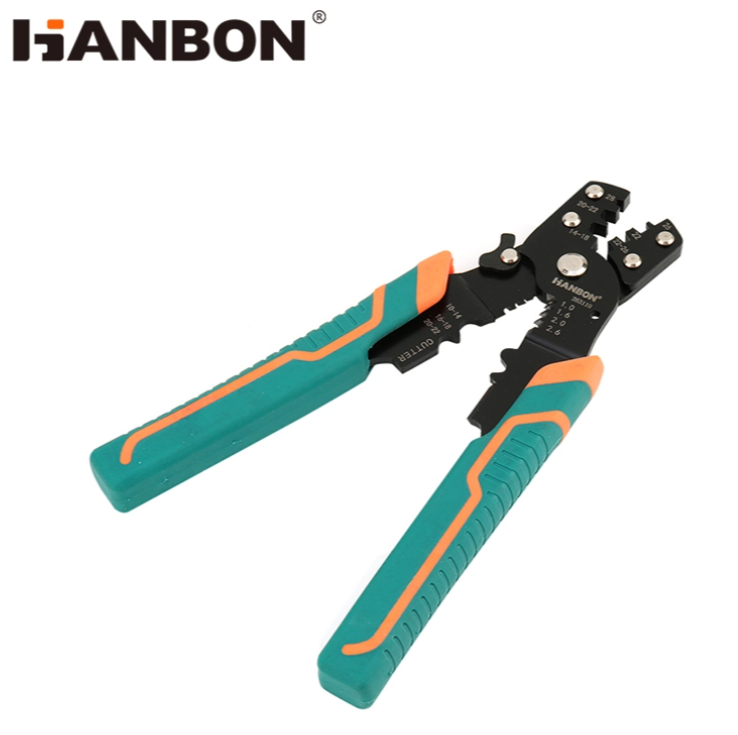

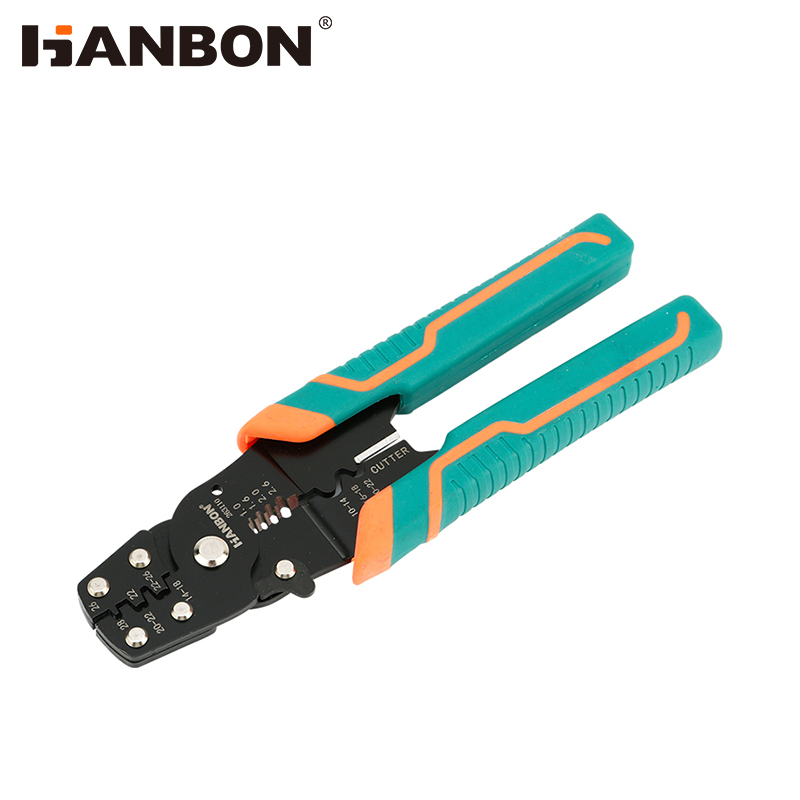

The HANBANG Dual-Color Handle Crimping Tool (Model 263110) is a precision manual crimper built for electrical termination tasks. It features hardened alloy steel jaws and dual-material grips, and supports crimping of insulated and non-insulated terminals across multiple wire ranges. The tool fits into industrial installation, automotive assembly, and telecom construction scenarios, supporting stable electrical connection formation.
Item | Specification |
Model | 263110 |
Size | 9" |
Body Material | 65#Mn |
Body Hardness | 55HRC |
Crimping range | 14-28mm² |
Cable diameter range | 10-22mm |
Stripping range | 0.6-1.31mm |

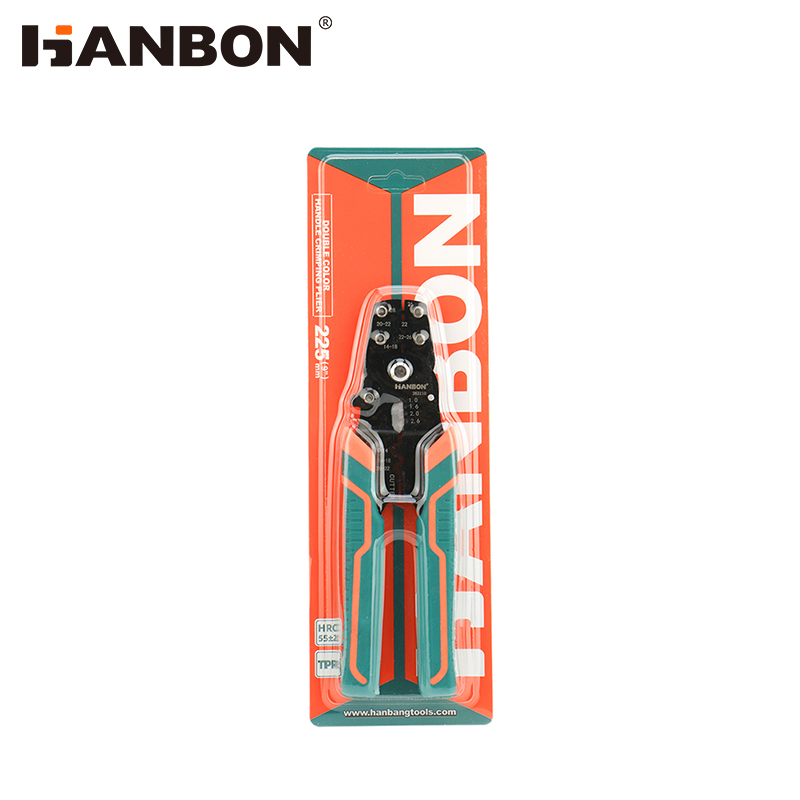

Packing | Sliding card |
Compatible wire range | 10-24 AWG (stranded and solid wires) |
Compatible terminal types | Ring, fork, spade terminals (up to 6 mm²) |
Crimping die AWG markings | 10-14, 14-18, 20-22, 22-26, 26, 28 |
Cutter capacity | 20 AWG, 22 AWG |
Compliance standards | UL 486A-486B, CSA C22.2 No. 65 |
Jaw hardness | HRC 40-45 |
Crimp cycle rating | 5,000+ cycles |
Hand fatigue reduction | Up to 35% |
Rework reduction | Up to 40% |
Weight | 180g |
Overall length | 16cm |
Handle construction | TPE soft-grip overmolding + ABS rigid frame |
Handle material (tool marking) | TPR |
 | |
Engineered with calibrated dies, the crimper delivers consistent crimp formation on 10-24 AWG stranded and solid wires, covering common specifications used in telecom and control systems to support steady signal transmission. It works with ring, fork, and spade terminals up to 6 mm², and complies with UL 486A-486B and CSA C22.2 No. 65 standards, suitable for safety-critical electrical connection projects.
The tool adopts a dual-compound handle structure, combining TPE soft-grip overmolding with an ABS rigid frame. This structure can reduce hand fatigue by up to 35% during extended operation, and enhances control precision in high-repetition installation workflows. The dual-color appearance also supports quick identification among mixed tool sets in busy work environments.
The crimping jaws are made of forged alloy steel with a hardness rating of HRC 40-45, maintaining edge integrity through 5,000+ crimp cycles. The tool body is constructed from 65#Mn material with a hardness of 55HRC, providing structural durability for long-term use in field service and production line environments.
An integrated guide mechanism is built into the crimp chamber, assisting with terminal placement during manual operation. This design lowers the risk of misaligned crimps, and can reduce rework by up to 40% in regular assembly workflows.
The tool weighs 180g with an overall length of 16cm, supporting belt carry or toolbag storage. Its compact size fits confined spaces such as vehicle ECUs, control panels, and network racks, adapting to on-site operation requirements in different scenarios.
This crimping tool serves various industrial scenarios and commercial use cases. In telecom central offices, it supports rapid termination of twisted-pair and coaxial cables on patch panels and distribution frames. For automotive assembly lines, it crimps sensor and harness connectors for engine control units and lighting modules. In industrial control panels, it installs terminal lugs on 12-14 AWG power conductors for PLC and relay systems. For electronics repair labs, it processes fine-gauge wires of 22-24 AWG for PCB prototyping and solderless connector assembly. Field service technicians working on HVAC, security, and smart home installations can also deploy this tool for on-site termination tasks.
HANBANG Hardware provides structured after-sales coverage for all its tools to support commercial procurement needs. Manual tools come with a 5-year quality warranty, while electric tools have a 3-year warranty, with lifetime after-sales support for all products. The support team guarantees 24-hour response to all after-sales inquiries, and offers free replacement for defective parts caused by manufacturing flaws within the warranty period.
For initial trades, the terms are 30% down payment with the balance settled via T/T before shipment. For trades after one year of cooperation, full payment via T/T before shipment is required.
Normal delivery time ranges from 15-30 days. During peak seasons, delivery time extends to 45 days. Specific lead times can be confirmed with our sales team.
A shipment invoice value over USD$$5,000.00 is required to avoid a shipping and handling charge of US$$150.00. For custom brand coloring, the MOQ is normally 1,000 to 2,000 pieces, subject to confirmation with our team.
Yes, custom logo service is available, with a corresponding MOQ requirement.
